Yaskawa AC Drives Products Range:

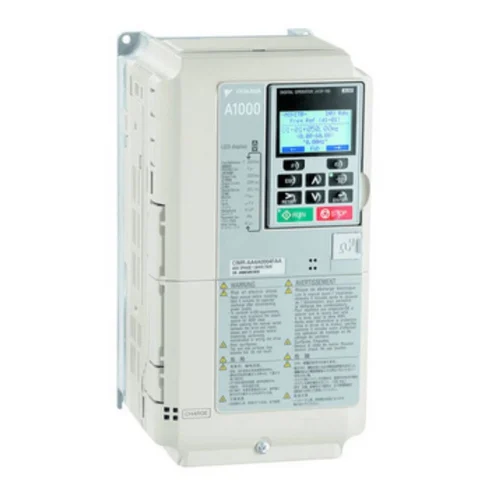

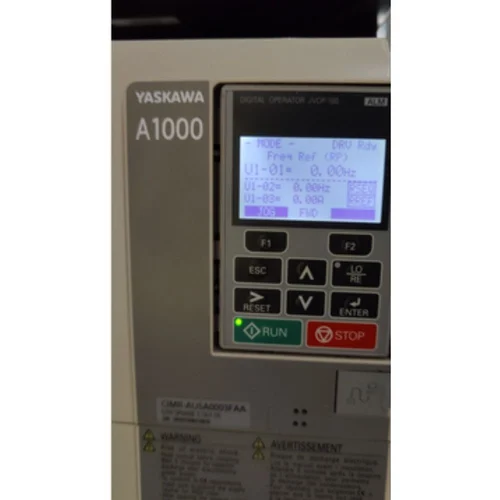

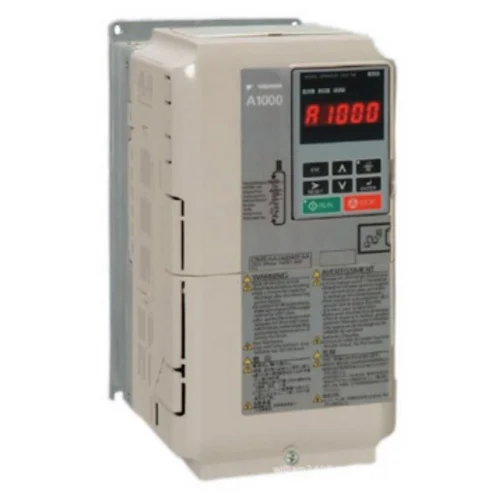

Yaskawa A1000 AC Drives
⭐⭐⭐⭐⭐(1 customer review)
| Brand | Yaskawa |
|---|---|
| Model Name/Number | A1000 |
| Motor Power | 0.75 HP to 1000 HP |
| Input Voltage | 400 V |
| Input Phase | 3 – Phase |
| Input Frequency | 50 Hz |
| Start Up Torque | High |
| Control Procedure | Vecto |
Yaskawa A1000 is the premium inverter from YASKAWA.
It provides great operation reliability, environmental benefits and energy savings as well as many other user oriented.A1000 drive is used Crane and Hoist applications in Industries such as Material Handling in Metals, Cement , Sugar , Paper, Automotive,Construction, Plastic ,textiles and others.0.75KW to 630KW.
Features:Encoder less operation of PM motors with full torque at zero speed.Advanced Auto-Tuning functions to adjust automatically motor settings and analyse continuously changes during motor operation to achieve highest machine performance.Advanced energy-saving control technology which improves efficiency and machine productivity incombination with induction and synchronous motor operation.
Models: (Normal Duty Rating):
CIMR-AD4A0002: 0.75kw,
CIMR-AD4A0004: 1.5kw,
CIMR-AD4A0005: 2.2kw,
CIMR-AD4A0007: 3kw,
CIMR-AD4A0009: 3.7kw,
CIMR-AD4A0011: 5.5kw,
CIMR-AD4A0018: 7.5kw,
CIMR-AD4A0023: 11kw,
CIMR-AD4A0031: 15kw,
CIMR-AD4A0038: 18.5kw,
CIMR-AD4A0044: 22kw,
CIMR-AD4A0058: 30kw,
CIMR-AD4A0072: 37kw,
CIMR-AD4A0088: 45kw,
CIMR-AD4A0103: 55kw,
CIMR-AD4A0139: 75kw,
CIMR-AD4A0165: 90kw,
CIMR-AD4A0208: 110kw,
CIMR-AD4A0250: 132kw,
CIMR-AD4A0296: 160kw,
CIMR-AD4A0362: 185kw,
CIMR-AA4A0414: 220kw,
CIMR-AD4A0515: 250kw,
CIMR-AD4A0675: 355kw,
CIMR-AD4A0930: 500kw,
CIMR-AD4A01200: 630kw,
Additional Information:
Delivery Time: Immediate

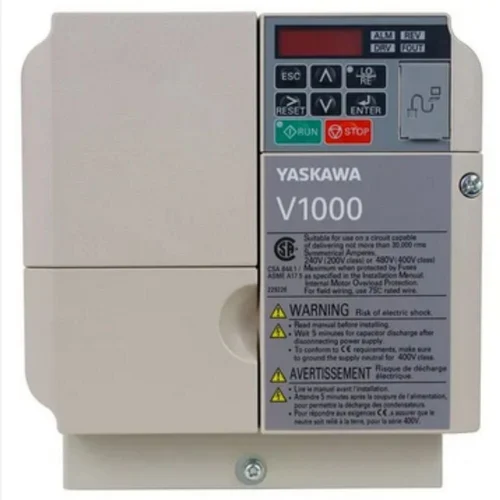

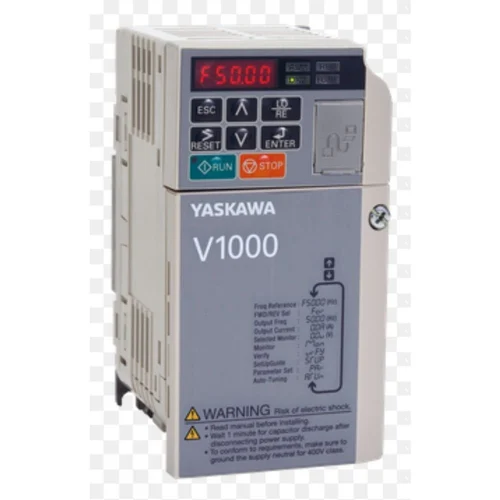

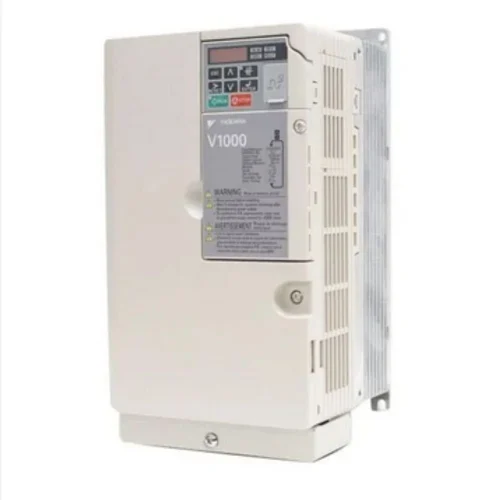

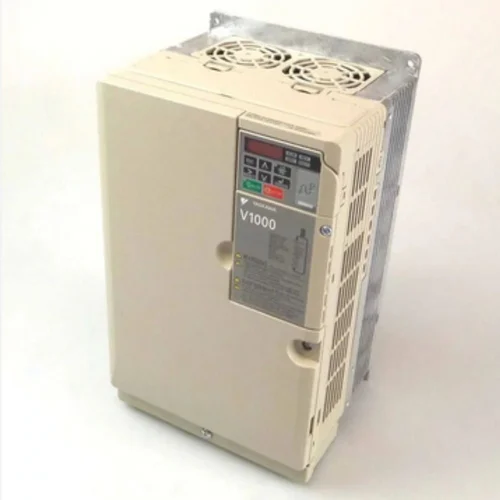

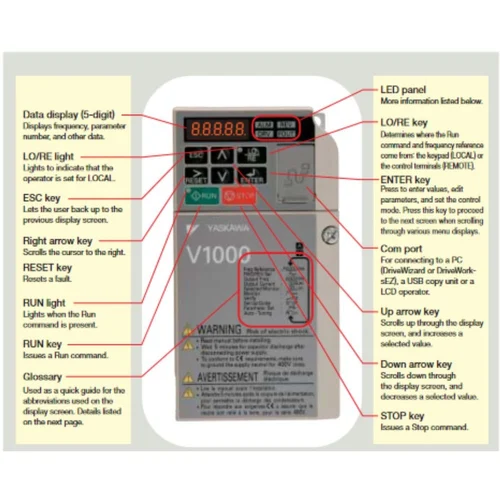

Yaskawa V1000 AC Drives
⭐⭐⭐⭐⭐(1 customer review)
| Brand | Yaskawa |
|---|---|
| Model Name/Number | V1000 |
| Motor Power | 0.2 kW to 18.5 kW |
| Input Voltage | 400 V |
| Input Phase | 3 – Phase |
| Input Frequency | 50 Hz |
| Start Up Torque | High |
| Warranty | 1 year |
| Application | Industrial VFD |
Yaskawa V1000 is a general purpose inverter drive covering the demands of a wide field of applications including Open-Loop-Vector functionality and the usage of PM motor without feedback.V1000 - 0.5hp to 25hp.
Features:High flux braking for 50% reduction of braking time.Quick response on load and speed changes to improves machine performance.Online Auto-Tuning to optimise for improved motor performance at low speed.Open Loop Vector Control for PM motor operation.Safe Disable Inputs for Safe Torque OFF.
Models: (Normal Duty Rating): CIMR-VT4A0001BAA: 0.4kw, CIMR-VT4A0002BAA: 0.75kw, CIMR-VT4A0004BAA: 1.5kw, CIMR-VT4A0005BAA: 2.2kw, CIMR-VT4A0007BAA: 3kw, CIMR-VT4A0009BAA: 3.7kw, CIMR-VT4A0011BAA: 5.5kw, CIMR-VT4A0018FAA: 7.5kw, CIMR-VT4A0023FAA: 11kw, CIMR-VT4A0031FAA: 15kw, CIMR-VT4A0038FAA: 18.5kw

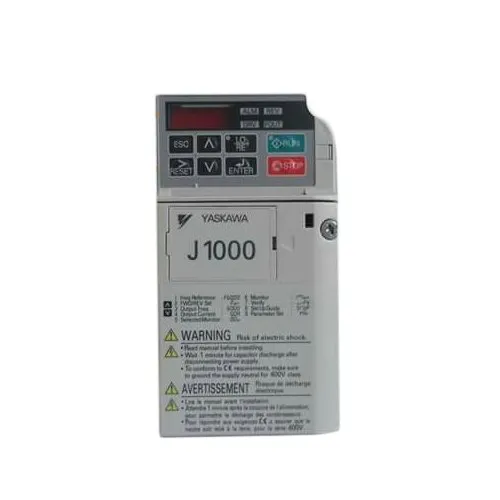

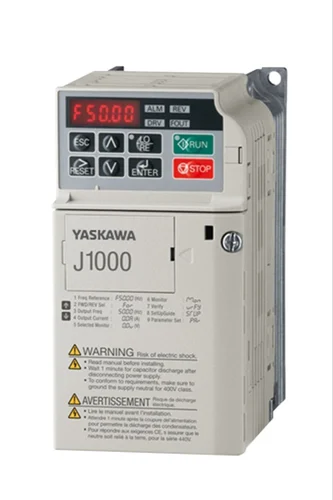

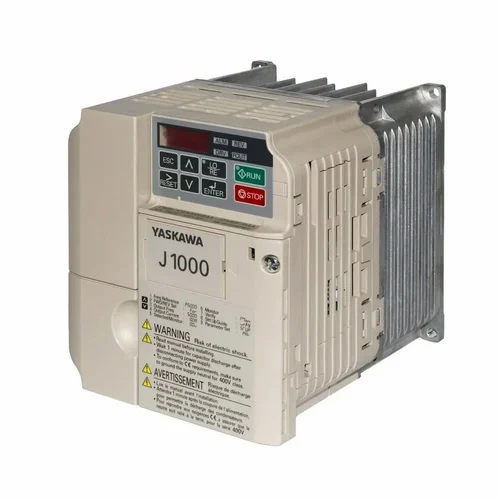

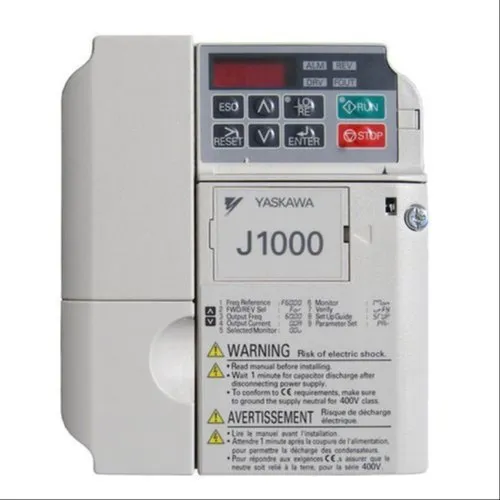

Yaskawa J1000 AC Drives
⭐⭐⭐⭐⭐(1 customer review)
| Brand | Yaskawa |
|---|---|
| Model Name/Number | J1000 Series |
| Motor Power | 0.4 kW to 5.5 kW |
| Input Voltage | 400 V |
| Input Phase | 3 – Phase |
| Input Frequency | 50 Hz |
| Start Up Torque | High |
| Warranty | 1 year |
Yaskawa J1000 meets all automation requirements for compact applications with variable speed operation and energy saving characteristics.
A wide range of useful functions upgrade your machine and offer great potentials.
Ratings: 0.5hp to 7.5hp.
Features:Compact – Sleek desing and side by side installation.A Breeze to operate – Easy parameterization with quick setup Mode.Environmentally friendly – Complaince with Eus RoHs directive.Automatic torque compensation across entire speed range.Stall Prevention Functions for stable operation during changes of load or power supply.Auto speed search functionality.Extensive Braking features.
Models: (Normal Duty Rating):
CIMR-JT4A0001BAA: 0.4kw,
CIMR-JT4A0002BAA: 0.75kw,
CIMR-JT4A0004BAA: 1.5kw,
CIMR-JT4A0005BAA: 2.2kw,
CIMR-JT4A0007BAA: 3kw,
CIMR-JT4A0007BAA: 3.7kw,
CIMR-JT4A0011BAA: 5.5kw

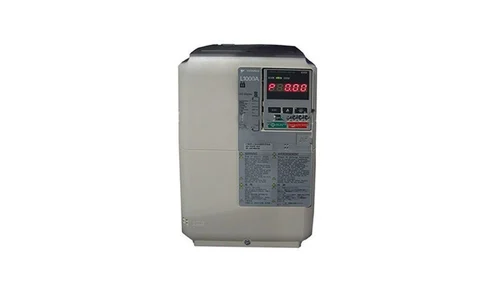

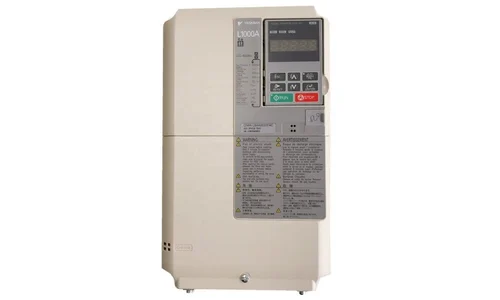

Yaskawa L1000A Lift Drives
⭐⭐⭐⭐⭐(1 customer review)
| Brand | Yaskawa |
|---|---|
| Model Name/Number | L1000A |
| Motor Power | 1.5 kW to 110 kW |
| Input Voltage | 200 V and 400 V |
| Input Phase | 3 – Phase |
| Input Frequency | 50 Hz |
| Start Up Torque | High |
| Installation Type | Lift Drives |
Yaskawa L1000A is the new special purpose lift inverter drive designed for 3 Million starts at 165% output current It provides advanced control functions to run induction and PM motor applications in geared or gearless elevator systems.
Features:New sensor-less torque compensation function including anti-rollback function,preventing shock and ensures a smooth start.New torque ripple suppression function for smooth start/stop and comfortable acceleration and deceleration characteristics.Overshoot and anti-vibration control including feed forward function, accel/decel compensation and 5 independent S-curve settings which ensure a perfectly smooth ride.UPS and light-load direction search function provide reliable rescue operation.New stationary Auto-Tuning with closed brake.One motor contactor solution in compliance with EN81-1.
Models: (Normal Duty Rating):
CIMR-LT4A0009: 3.7kw,
CIMR-LT4A0015: 5.5kw,
CIMR-LT4A0018: 7.5kw,
CIMR-LT4A0024: 11kw,
CIMR-LT4A0031: 15kw,
CIMR-LT4A0039: 18.5kw,
CIMR-LT4A0045: 22kw,
CIMR-LT4A0060: 30kw,
CIMR-LT4A0075: 37kw,
CIMR-LT4A0091: 45kw,
CIMR-LT4A0112: 55kw,
CIMR-LT4A0150: 75kw,
CIMR-LT4A0180: 90kw,
CIMR-LT4A0216: 110kw,

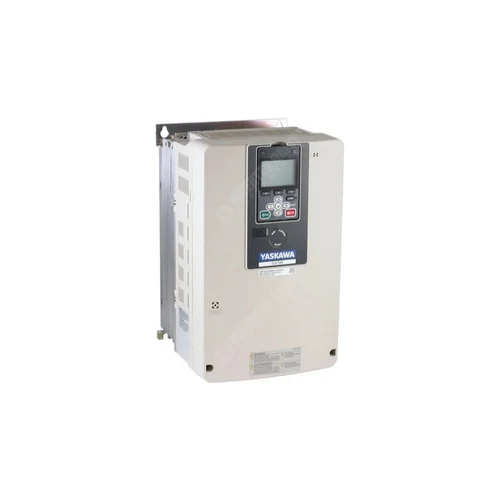

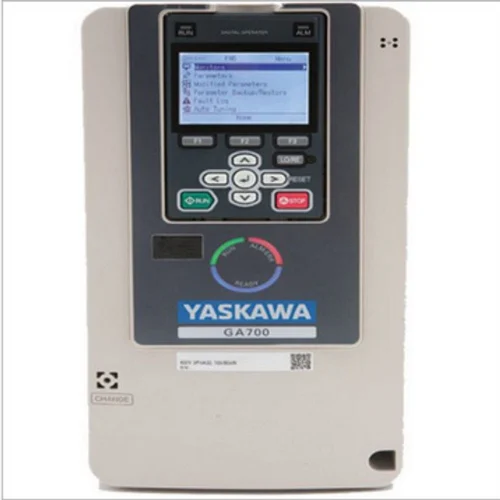

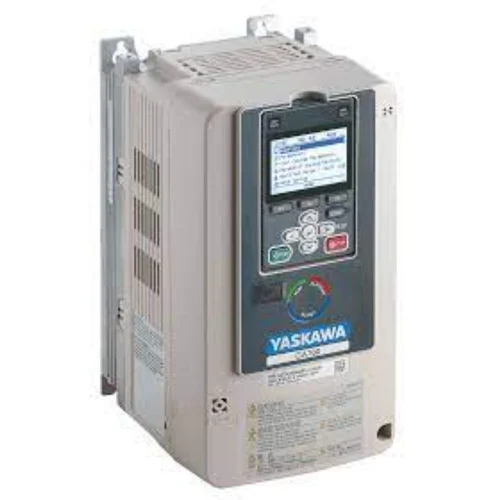

Yaskawa GA700 VFD
⭐⭐⭐⭐⭐(1 customer review)
| Brand | Yaskawa |
|---|---|
| Model Name/Number | GA700 Series |
| Motor Power | 0.4 kW to 355 kW |
| Input Voltage | 400 V |
| Input Phase | 3 – Phase |
| Input Frequency | 50 Hz |
| Start Up Torque | High |
Yaskawa GA700 Drives are High Performance type general perpose drive.Ratings: 0.75kw to 355kw.
Models and Ratings (Normal Duty):
CIPR-GA70D4002: 0.75kw,
CIPR-GA70D4004: 1.5kw,
CIPR-GA70D4005: 2.2kw,
CIPR-GA70D4007: 3kw,
CIPR-GA70D4009: 3.7kw,
CIPR-GA70D4012: 5.5kw,
CIPR-GA70D4018: 7.5kw,
CIPR-GA70D4023: 11kw,
CIPR-GA70D4031: 15kw,
CIPR-GA70D4038: 18.5kw,
CIPR-GA70D4044: 22kw,
CIPR-GA70D4060: 30kw,
CIPR-GA70D4075: 37kw,
CIPR-GA70D4089: 45kw,
CIPR-GA70D4103: 55kw,
CIPR-GA70D4140: 75kw,
CIPR-GA70D4168: 90kw,
CIPR-GA70D4208: 110kw,
CIPR-GA70D4250: 132kw,
CIPR-GA70D4296: 160kw,
CIPR-GA70D4371: 200kw,
CIPR-GA70D4389: 220kw,
CIPR-GA70D4453: 250kw,
CIPR-GA70D4568: 315kw,
